Datasheet

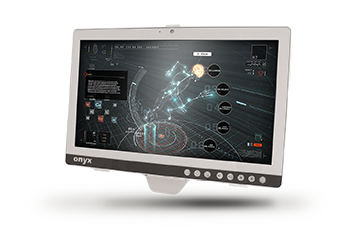

ONYX-BE182

18.5” Fanless J1900 Quad Core Slim Medical Panel PC

Product Feature

• Intel® J1900 2.42GHz Quad Core Processor
• 18.5” Wide Color TFT LCD Touch Terminal
• PCT for supporting Multi-Touch
• Wire Remote-Control w/ Handset Function
• VOIP Phone, Webcam, High Quality Speaker, MSR, Smart Card Reader
• Reading Light
• Extension Feature: RFID, Barcode Scanner
• IP65 Water Proof in front
• EN 60601-1, UL 60601-1

Datasheet

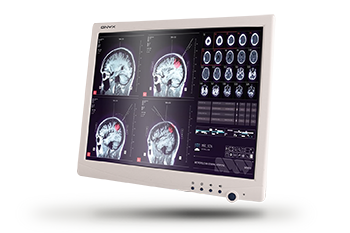

ONYX-1731

17” Fanless J1900 Quad Core Slim Medical Panel PC

Product Feature

• Intel Celeron J1900 2.42GHz Quad Core Processor
• 17” High Brightness 350 nits SXGA LCD
• Supports DDR3L SODIMM up to 8GB
• 5-wire Resistive Touch Screen
• COM/LAN Medical Isolation
• Trusted Platform Module / Smart Card Reader(optional) /RFID Reader(optional)
• 802.11ac/a/b/g/n Wireless LAN(optional)
• +12V to +24V wide range DC input

Datasheet

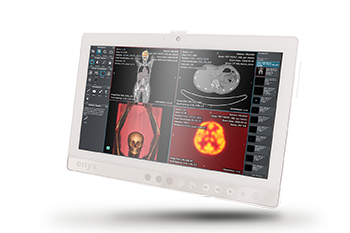

ONYX-1531

15.6” Fanless J1900 Quad Core Slim Medical Panel PC

Product Feature

• Intel® Celeron J1900 2.42GHz Quad Core Processor
• 15.6” High Brightness 300-nit Full HD LCD
• Supports DDR3L SODIMM up to 8GB
• 5-wire Resistive Touch Screen / Capacitive Multi-Touch Screen
• Easy Cleaning Flat Screen
• 7 Programmable Smart Function Keys
• COM/LAN Medical Isolation
• 2.0M Pixels Camera with Mic (optional)
• Handset Phone (optional)
• Trusted Platform Module / Smart Card Reader(optional) /MSR(optional) / RFID Reader(optional)
• +12V to +24V wide range DC input / Power over Ethernet(optional)

Datasheet

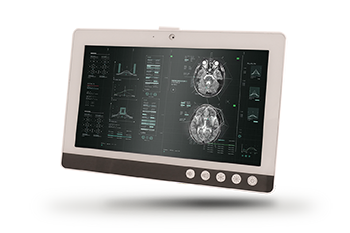

ONYX-1222

11.6” Fanless J1900 Quad Core Slim Medical Panel PC

Product Feature

• Intel® Celeron J1900 2.42GHz Quad Core Processor
• 11.6” 220-nit WXGA LCD
• Supports DDR3 SODIMM up to 8GB
• 5-wire Resistive Touch Screen / Capacitive Multi-Touch Screen
• Easy Cleaning Flat Screen
• 5 Programmable Smart Function Keys
• COM/LAN Medical Isolation
• High Speed USB 3.0 Port
• 2.0M Pixels Camera with Mic (optional)
• Handset Phone (optional)
• Trusted Platform Module / Smart Card Reader(optional) / MSR(optional) / RFID Reader (optional)
• +12V to +24V wide range DC input / Power over Ethernet(optional)

Datasheet

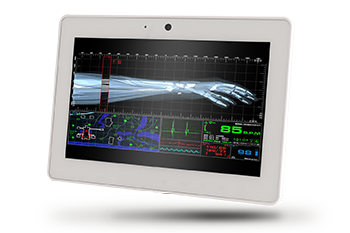

ONYX-1022

10.1” Fanless J1900 Quad Core Slim Medical Panel PC

Product Feature

• Intel® Celeron J1900 2.42GHz Quad Core Processor
• 10.1” 1280x800 LCD
• Supports DDR3L SODIMM up to 8GB
• Capacitive Multi-Touch Screen/ 5-Wire Resistive Touch Screen
• Easy Cleaning Flat Screen
• Two Gigabit Ethernet
• One High Speed USB 3.0 Port
• Trusted Platform Module / Smart Card Reader(optional) / RFID Reader(optional)
• 2.0M Pixels Camera with Mic(optional)
• +12V DC input
