TFT LCD,OLED製品一覧表

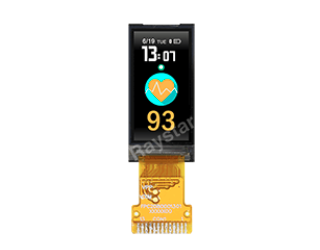

0.96" TFT Mini IPS LCD Display Module 80x160

Model No. RFA300960A-AYW-DNN
  • Model No. RFA300960A-AYW-DNN
  • Size (Diagonal) : 0.96 inch
  • Dot Matrix / Resolution : 80×160 dots
  • Module Dimension : 13.5×27.95 mm
  • Active Area : 10.8×21.696 mm
  • Interface : SPI
  • Touch Panel : Without Touch Screen
  • View Area : 11.40×22.27 mm

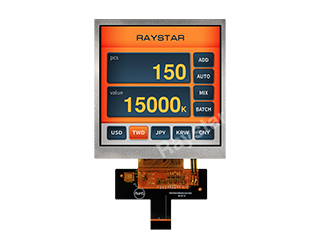

4 inch 480x480 TFT LCD Display Panel

Model No. RFA6400E-AWW-MNN
  • Model No. RFA6400E-AWW-MNN
  • Size (Diagonal) : 4 inch
  • Dot Matrix / Resolution : 480×480 dots
  • Module Dimension : 78.8×82.95 mm
  • Active Area : 71.856×70.176 mm
  • Interface : MIPI DSI
  • Touch Panel : Without Touch Screen
  • View Area : 73.06×71.38 mm

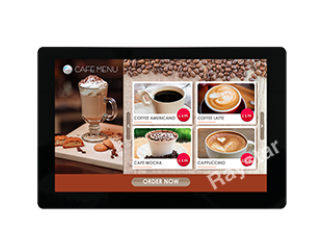

Sun Readable, IPS, LVDS Capacitive Touch Screen Display 10.1"

Model No. RFK1010F-AYH-LNG
  • Model No. RFK1010F-AYH-LNG
  • Size (Diagonal) : 10.1 inch
  • Dot Matrix / Resolution : 1280×800 dots
  • Module Dimension : 257.96×168.6 mm
  • Active Area : 216.96×135.6 mm
  • Interface : LVDS
  • Touch Panel : Projected Capacitive Touch Screen
  • View Area : 218×137 mm

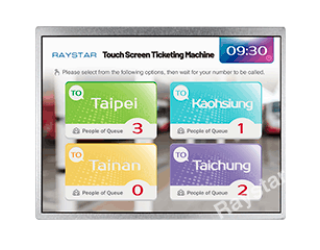

1024x768 TFT Display

Model No. RFM1210E-AWW-LNN
  • Model No. RFM1210E-AWW-LNN
  • Size (Diagonal) : 12.1 inch
  • Dot Matrix / Resolution : 1024×768 dots
  • Module Dimension : 260.5×204 mm
  • Active Area : 245.76×184.32 mm
  • Interface : LVDS
  • Touch Panel : Without Touch Screen
  • View Area : 249×187.5 mm

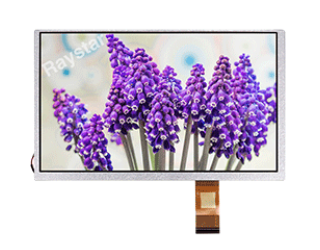

9" Wide Temperature TFT LCD Display

Model No. RFH900B-AWW-LNN
  • Model No. RFH900B-AWW-LNN
  • Size (Diagonal) : 9 inch
  • Dot Matrix / Resolution : 1024×600 dots
  • Module Dimension : 211.1×126.5 mm
  • Active Area : 196.608×114.15 mm
  • Interface : LVDS
  • Touch Panel : Without Touch Screen
  • View Area : 200.01×117.55 mm

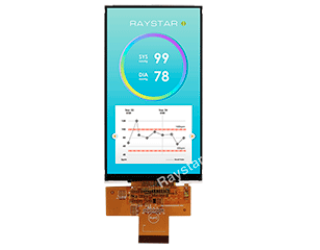

5" IPS, MIPI TFT LCD Panel

Model No. RF3500D-AYW-MNN
  • Model No. RF3500D-AYW-MNN
  • Size (Diagonal) : 5 inch
  • Dot Matrix / Resolution : 720×1280 dots
  • Module Dimension : 66.1×120.4 mm
  • Active Area : 62.1×110.4 mm
  • Interface : MIPI DSI
  • Touch Panel : Without Touch Screen
  • View Area : 66.1×120.4 mm

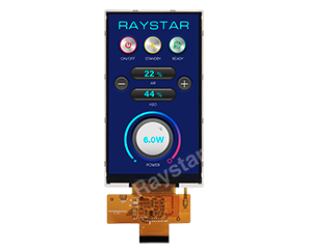

5" 720x1280 IPS, MIPI, High Brightness TFT LCD Display

Model No. RF3500D-AYH-MNN
  • Model No. RF3500D-AYH-MNN
  • Size (Diagonal) : 5 inch
  • Dot Matrix / Resolution : 720×1280 dots
  • Module Dimension : 68.4×122.7 mm
  • Active Area : 62.1×110.4 mm
  • Interface : MIPI DSI
  • Touch Panel : Without Touch Screen
  • View Area : 64.1×112.3 mm

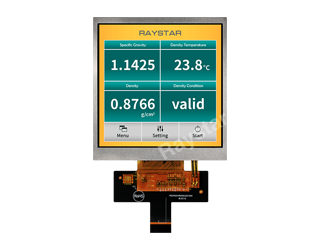

4 inch Sunlight Readable Square TFT LCD Display Panel 480x480

Model No. RFA6400E-AWH-MNN
  • Model No. RFA6400E-AWH-MNN
  • Size (Diagonal) : 4 inch
  • Dot Matrix / Resolution : 480×480 dots
  • Module Dimension : 78.8×82.95 mm
  • Active Area : 71.856×70.176 mm
  • Interface : MIPI DSI
  • Touch Panel : Without Touch Screen
  • View Area : 73.06×71.38 mm

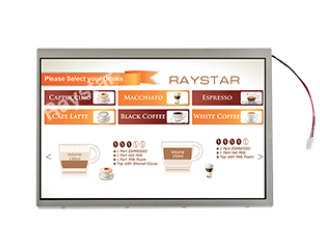

10.1" LVDS, IPS Sun Readable Display

Model No. RFK1010F-AYH-LNN
  • Model No. RFK1010F-AYH-LNN
  • Size (Diagonal) : 10.1 inch
  • Dot Matrix / Resolution : 1280×800 dots
  • Module Dimension : 230.56×155.01 mm
  • Active Area : 216.96×135.6 mm
  • Interface : LVDS
  • Touch Panel : Without Touch Screen
  • View Area : 220.6×138.7 mm

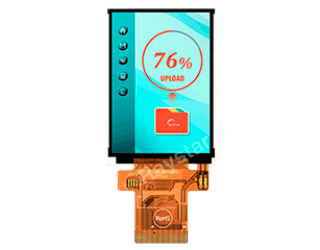

2.4" IPS TFT LCD Display 240x320

Model No. RFJ240L-AYW-DNN
  • Model No. RFJ240L-AYW-DNN
  • Size (Diagonal) : 2.4 inch
  • Dot Matrix / Resolution : 240×320 dots
  • Module Dimension : 42.72×60.26 mm
  • Active Area : 36.72×48.96 mm
  • Interface : MCU,SPI
  • Touch Panel : Without Touch Screen

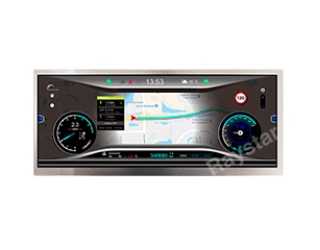

12.3" TFT 1920x720 LCD Display

Model No. RFY1230B-AWH-LNN
  • Model No. RFY1230B-AWH-LNN
  • Size (Diagonal) : 12.3 inch
  • Dot Matrix / Resolution : 1920×720 dots
  • Module Dimension : 308.1×130 mm
  • Active Area : 292.32×109.62 mm
  • Interface : LVDS
  • Touch Panel : Without Touch Screen

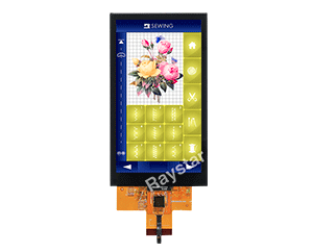

5 inch IPS, MIPI TFT LCD Display Module (PCAP)

Model No. RF3500D-AYW-MNG1
  • Model No. RF3500D-AYW-MNG1
  • Size (Diagonal) : 5 inch
  • Dot Matrix / Resolution : 720×1280 dots
  • Module Dimension : 73.3×127.6 mm
  • Active Area : 62.1×110.4 mm
  • Interface : MIPI DSI
  • Touch Panel : Projected Capacitive Touch Screen
  • View Area : 63.1×111.4 mm

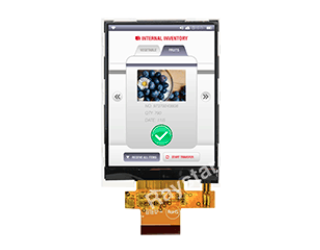

3.5" High Brightness TFT LCD Module

Model No. RFJ350W-AWH-DNN
  • Model No. RFJ350W-AWH-DNN
  • Size (Diagonal) : 3.5 inch
  • Dot Matrix / Resolution : 240×320 dots
  • Module Dimension : 61.8×88.5 mm
  • Active Area : 53.28×71.04 mm
  • Interface : MCU
  • Touch Panel : Without Touch Screen
  • View Area : 55.28×73.04 mm

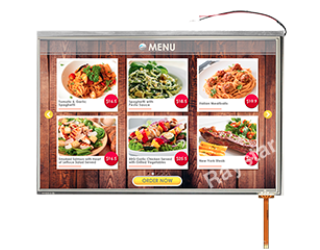

Sun Readable, IPS, LVDS Touch Screen Display 10.1" (RTP)

Model No. RFK1010F-AYH-LNS
  • Model No. RFK1010F-AYH-LNS
  • Size (Diagonal) : 10.1 inch
  • Dot Matrix / Resolution : 1280×800 dots
  • Module Dimension : 230.56×155.01 mm
  • Active Area : 216.96×135.6 mm
  • Interface : LVDS
  • Touch Panel : Resistive Touch Screen
  • View Area : 218×137 mm

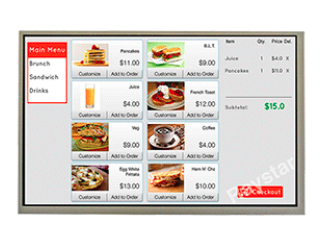

10.1" TFT Display, 1280x800 IPS LCD Panel

Model No. RFK1010G-AYW-LNN
  • Model No. RFK1010G-AYW-LNN
  • Size (Diagonal) : 10.1 inch
  • Dot Matrix / Resolution : 1280×800 dots
  • Module Dimension : 229.34×148.98 mm
  • Active Area : 216.96×135.6 mm
  • Interface : LVDS
  • Touch Panel : Without Touch Screen
  • View Area : 220.06×138.7 mm

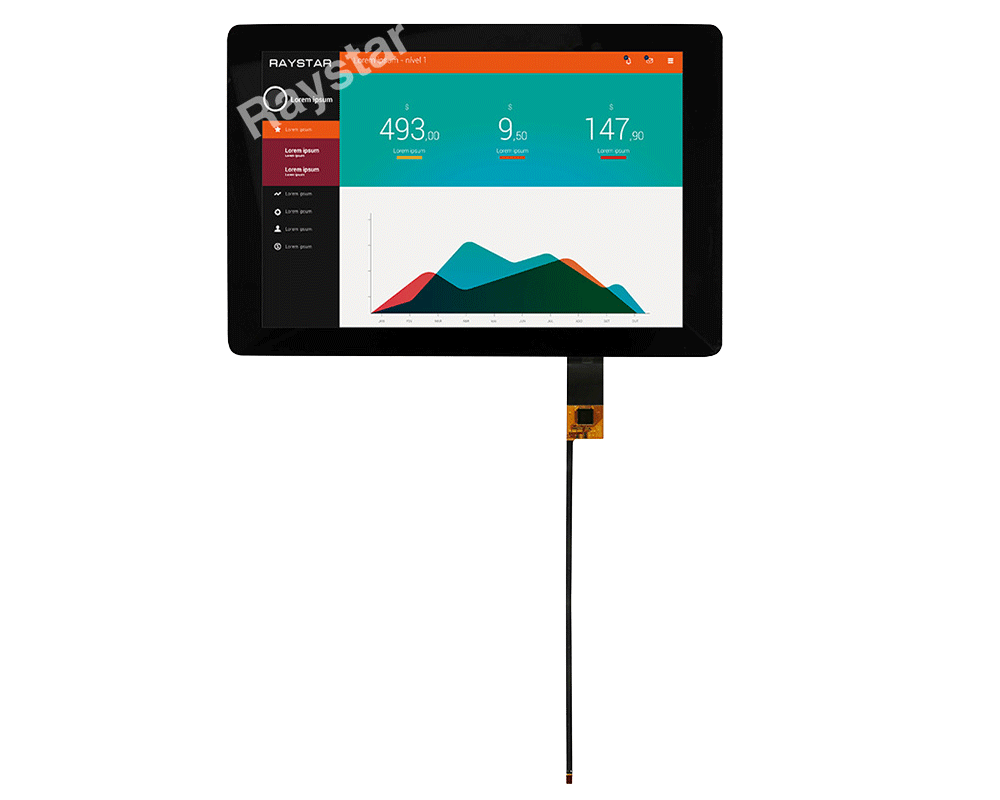

LVDS , IPS LCD Capacitive Touchscreen 10.1"

Model No. RFK1010G-AYW-LNG
  • Model No. RFK1010G-AYW-LNG
  • Size (Diagonal) : 10.1 inch
  • Dot Matrix / Resolution : 1280×800 dots
  • Module Dimension : 257.96×168.6 mm
  • Active Area : 216.96×135.6 mm
  • Interface : LVDS
  • Touch Panel : Projected Capacitive Touch Screen
  • View Area : 218×137 mm

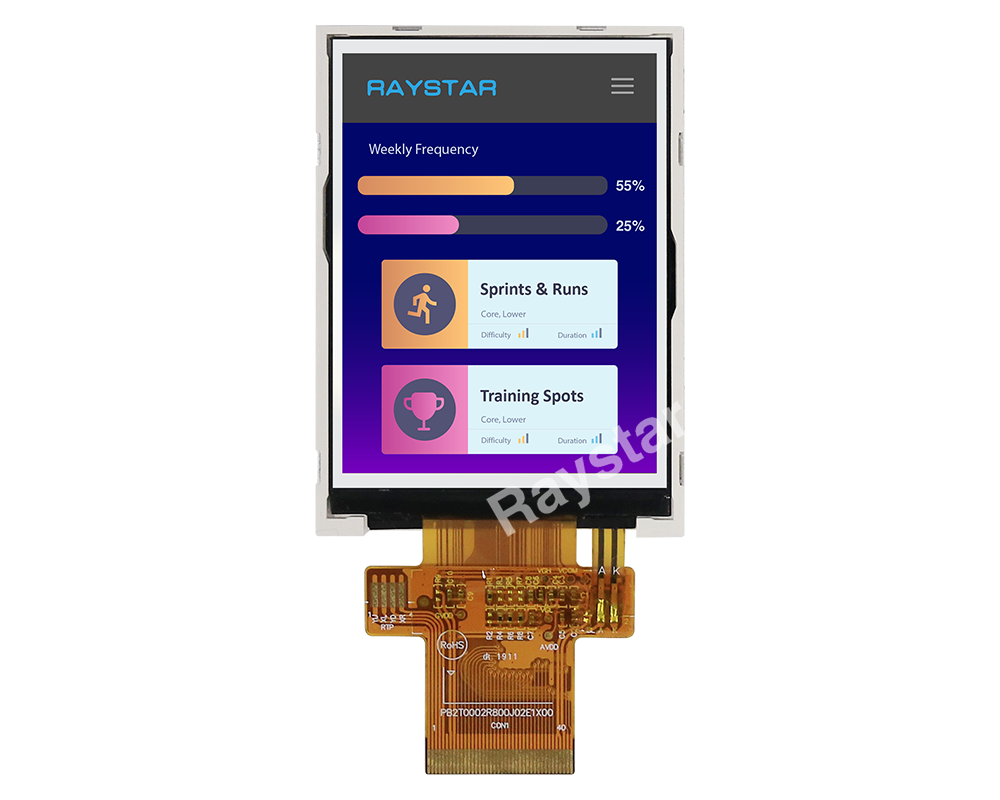

IPS, ILI9341 TFT Display 240x320, 2.8"

Model No. RFJ280J-AYW-DNN
  • Model No. RFJ280J-AYW-DNN
  • Size (Diagonal) : 2.8 inch
  • Dot Matrix / Resolution : 240×320 dots
  • Module Dimension : 50.5×69.7 mm
  • Active Area : 43.2×57.6 mm
  • Interface : MCU,SPI
  • Touch Panel : Without Touch Screen
  • View Area : 44.2×58.6 mm

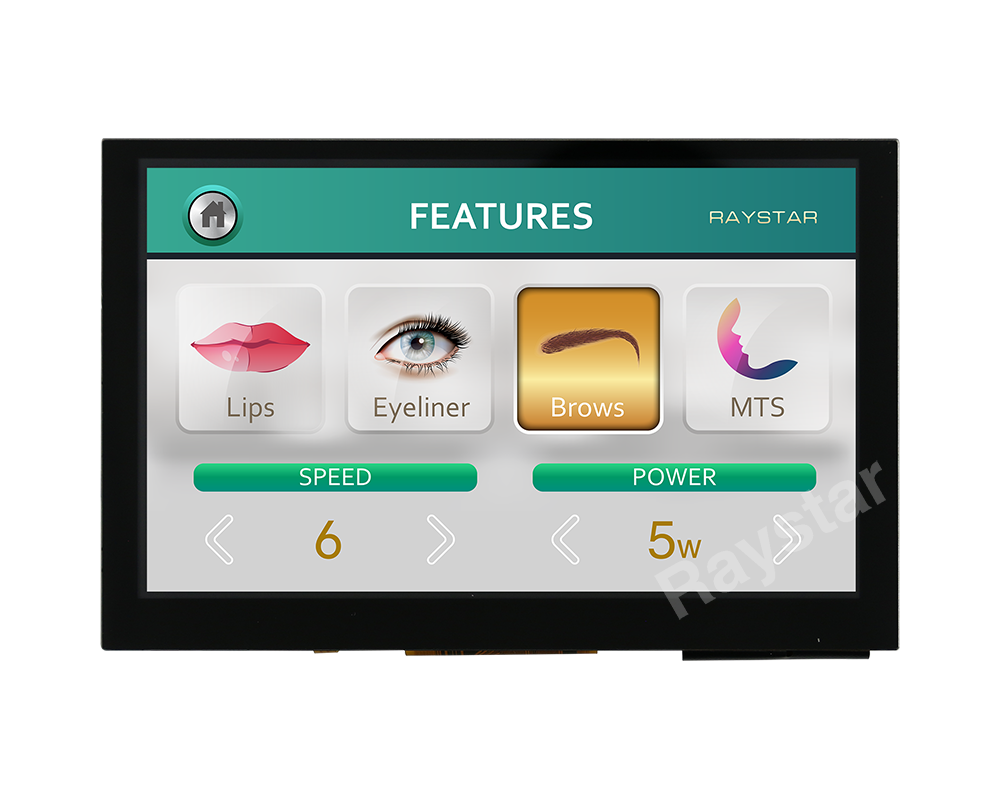

5" IPS TFT LCD With Projected Capacitive Touchscreen (Support HDMI Signal)

Model No. RFF50VF-1YH-DHG
  • Model No. RFF50VF-1YH-DHG
  • Size (Diagonal) : 5 inch
  • Dot Matrix / Resolution : 800×480 dots
  • Module Dimension : 120.7×75.8 mm
  • Active Area : 108×64.8 mm
  • Interface : DVI (HDMI CN)
  • Touch Panel : Projected Capacitive Touch Screen
  • View Area : 109×65.1 mm

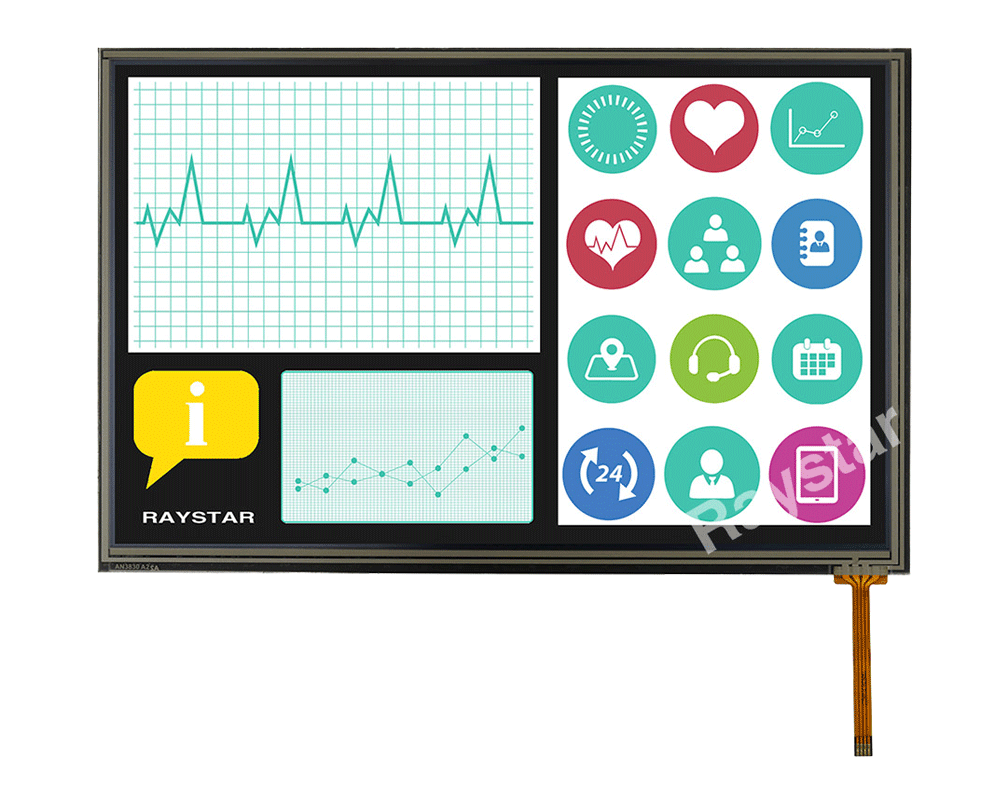

LVDS, IPS Resistive Touchscreen LCD Display 10.1"

Model No. RFK1010G-AYW-LNS
  • Model No. RFK1010G-AYW-LNS
  • Size (Diagonal) : 10.1 inch
  • Dot Matrix / Resolution : 1280×800 dots
  • Module Dimension : 229.34×148.98 mm
  • Active Area : 216.96×135.6 mm
  • Interface : LVDS
  • Touch Panel : Resistive Touch Screen
  • View Area : 220.06×138.7 mm

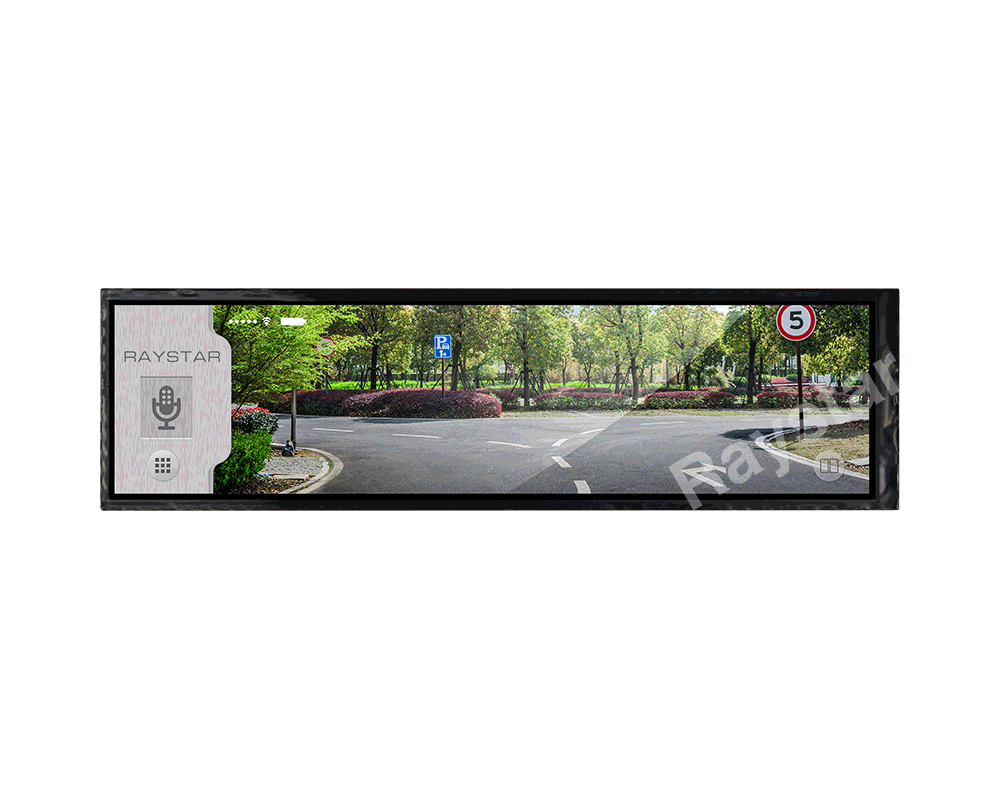

8.88" IPS , MIPI, TFT LCD Display Module 480x1920

Model No. RF8880B-AYW-MNN
  • Model No. RF8880B-AYW-MNN
  • Size (Diagonal) : 8.88 inch
  • Dot Matrix / Resolution : 480×1920 dots
  • Module Dimension : 231.3×64.3 mm
  • Active Area : 218.88×54.72 mm
  • Interface : MIPI DSI
  • Touch Panel : Without Touch Screen
  • View Area : -- mm

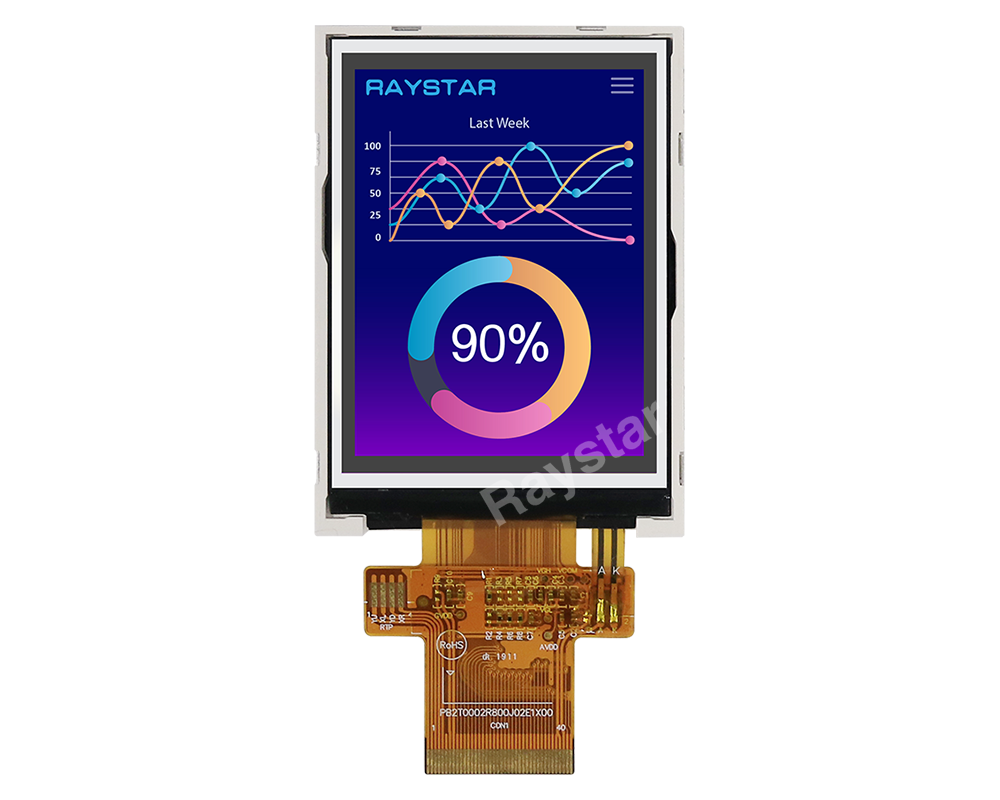

2.8" IPS High Brightness TFT LCD Display 240x320

Model No. RFJ280J-AYH-DNN
  • Model No. RFJ280J-AYH-DNN
  • Size (Diagonal) : 2.8 inch
  • Dot Matrix / Resolution : 240×320 dots
  • Module Dimension : 50.5×69.7 mm
  • Active Area : 43.2×57.6 mm
  • Interface : MCU,SPI
  • Touch Panel : Without Touch Screen
  • View Area : 44.2×58.6 mm

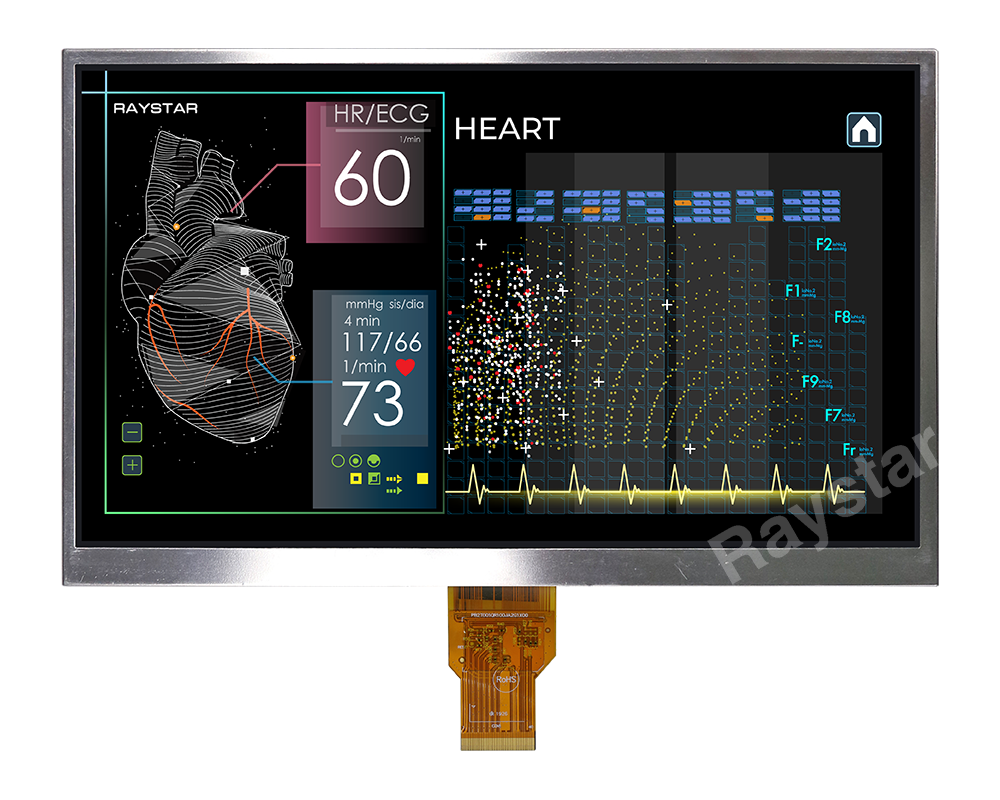

LVDS Interface IPS TFT LCD Display 10.1"

Model No. RFH1010J-AYW-LNN
  • Model No. RFH1010J-AYW-LNN
  • Size (Diagonal) : 10.1 inch
  • Dot Matrix / Resolution : 1024×600 dots
  • Module Dimension : 235×143 mm
  • Active Area : 222.72×125.28 mm
  • Interface : LVDS
  • Touch Panel : Without Touch Screen
  • View Area : 226×128.5 mm

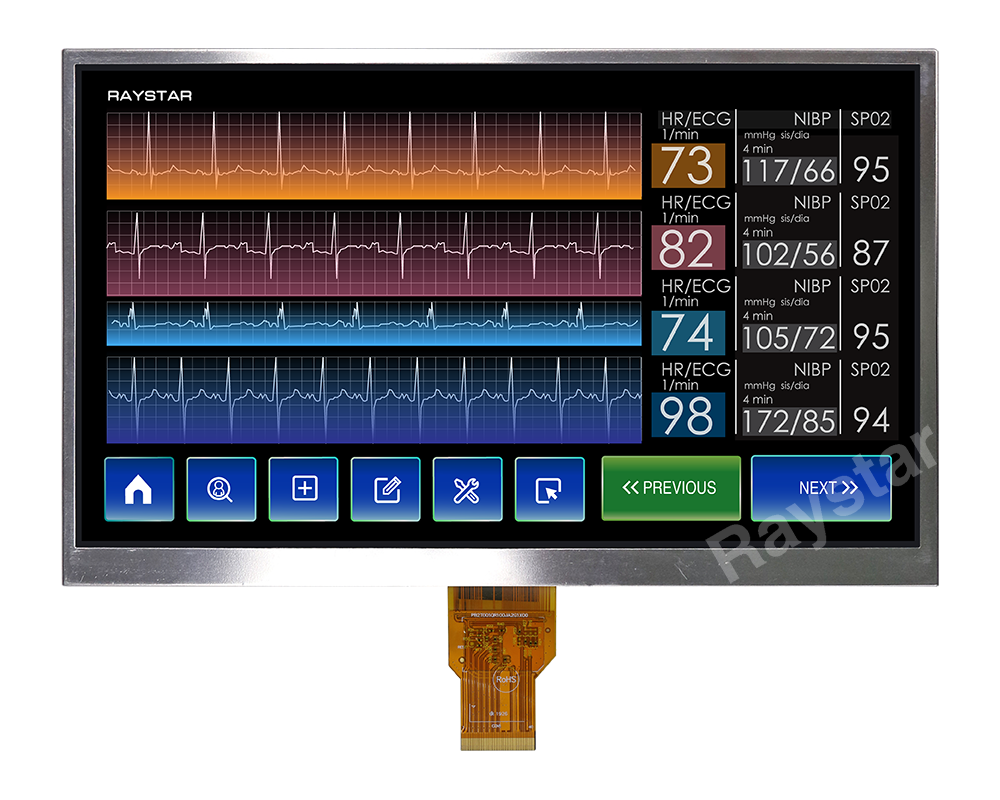

LVDS IPS High Brightness TFT LCD Display 10.1"

Model No. RFH1010J-AYH-LNN
  • Model No. RFH1010J-AYH-LNN
  • Size (Diagonal) : 10.1 inch
  • Dot Matrix / Resolution : 1024×600 dots
  • Module Dimension : 235×143 mm
  • Active Area : 222.72×125.28 mm
  • Interface : LVDS
  • Touch Panel : Without Touch Screen
  • View Area : 226×128.5 mm

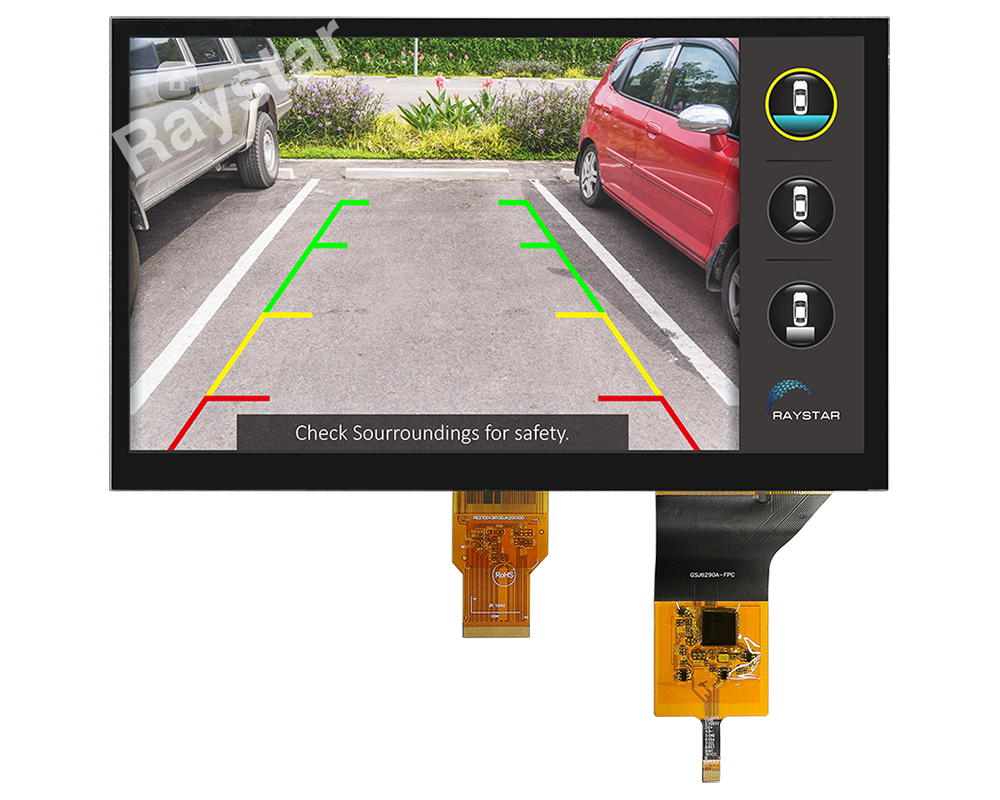

LVDS IPS High Brightness TFT LCD Display 10.1" with PCAP

Model No. RFH1010J-AYH-LNB
  • Model No. RFH1010J-AYH-LNB
  • Size (Diagonal) : 10.1 inch
  • Dot Matrix / Resolution : 1024×600 dots
  • Module Dimension : 235×143 mm
  • Active Area : 222.72×125.28 mm
  • Interface : LVDS
  • Touch Panel : Projected Capacitive Touch Screen
  • View Area : 223.72×126.28 mm

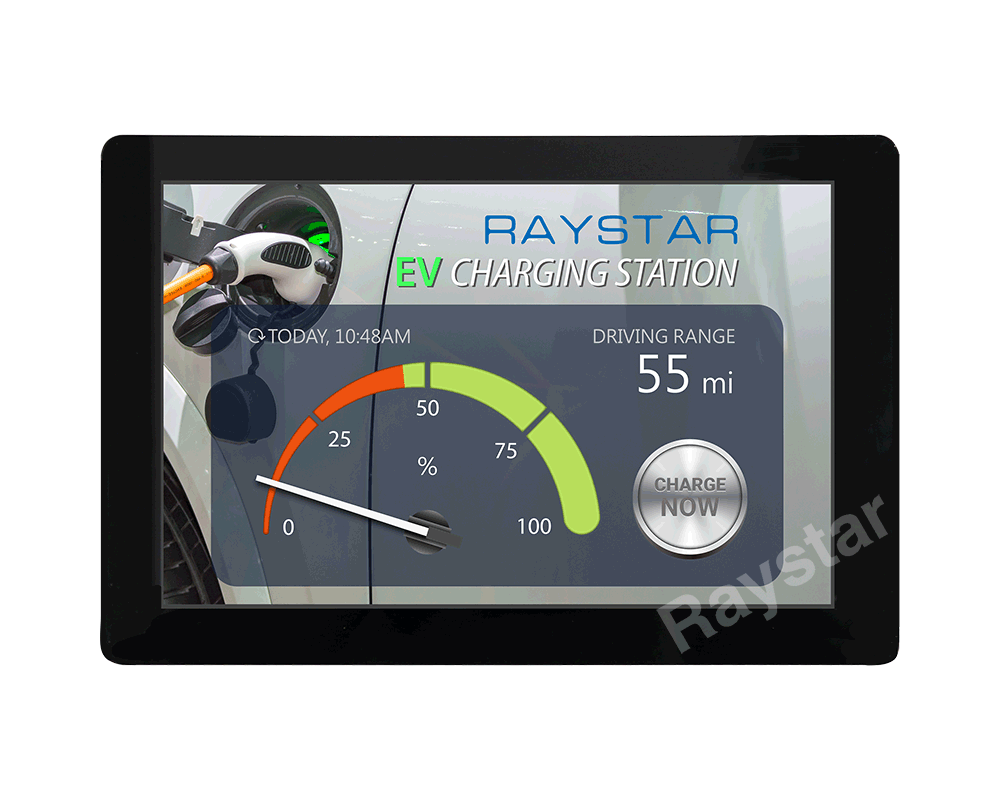

10.1" IPS TFT Display Supporting HDMI Interface

Model No. RFK101VF-1YH-LHG
  • Model No. RFK101VF-1YH-LHG
  • Size (Diagonal) : 10.1 inch
  • Dot Matrix / Resolution : 1280×800 dots
  • Module Dimension : 257.96×168.6 mm
  • Active Area : 216.96×135.6 mm
  • Interface : DVI (HDMI CN)
  • Touch Panel : Projected Capacitive Touch Screen
  • View Area : 218×137 mm

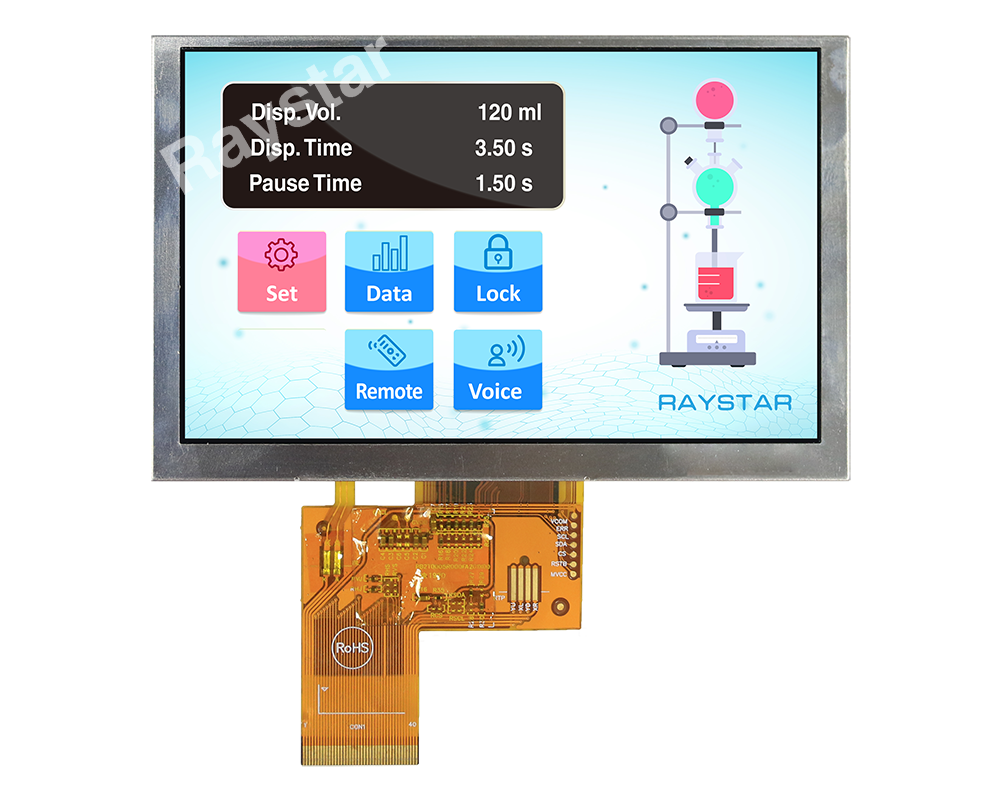

5 inch IPS 800x480 Color TFT LCD Dispaly Panel

Model No. RFF500F-AWW-DNN
  • Model No. RFF500F-AWW-DNN
  • Size (Diagonal) : 5 inch
  • Dot Matrix / Resolution : 800×480 dots
  • Module Dimension : 120.7×75.8 mm
  • Active Area : 108×64.8 mm
  • Interface : RGB
  • Touch Panel : Without Touch Screen

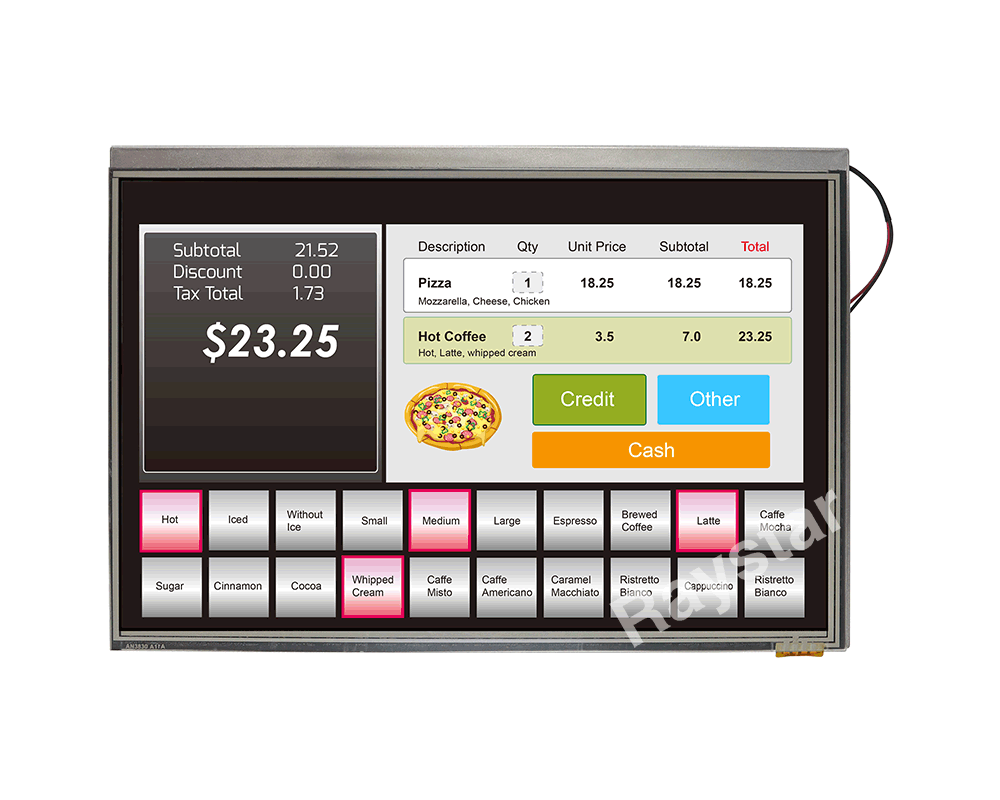

1280x800 Resolution, Support HDMI Signal TFT Display 10.1 with RTP

Model No. RFK101VF-1YH-LHS
  • Model No. RFK101VF-1YH-LHS
  • Size (Diagonal) : 10.1 inch
  • Dot Matrix / Resolution : 1280×800 dots
  • Module Dimension : 230.56×155.01 mm
  • Active Area : 216.96×135.6 mm
  • Interface : DVI (HDMI CN)
  • Touch Panel : Resistive Touch Screen
  • View Area : 218×137 mm
