Datasheet

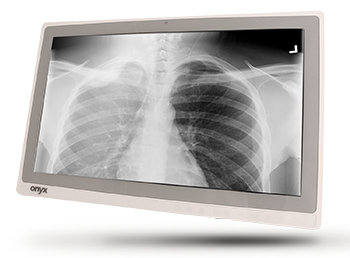

ZEUS-248

24” Fanless Smart View 7th Generation Core i7 Multi-Touch Medical Station

Product Feature

• Intel® 7th Generation Core i7-7600U 3.9GHz Dual Core Processor
• 24" 250-nit Full HD High Contrast MVA LCD
• Supports DDR4 SODIMM up to 32GB
• Capacitive Multi-Touch Screen / 5 Wire Resistive Touch Screen
• Easy Cleaning Flat Screen
• 10 Programmable Smart Function Keys with Dual Colors LED Status Indication
• LAN/USB(optional)/COM(optional) Medical Isolation
• Super Speed 10Gb/s USB 3.1 Port
• PCI Express[x4] x 1, PCI Express[x1] , PCI x1(optional)
• Trusted Platform Module / Smart Card Reader(optional) / RFID Reader(optional)
• Remote Management: Intel Active Management Technology
• +12V to +24V wide range DC input / 100V to 240V AC input
• 25Wh Backup Battery(optional)

Datasheet

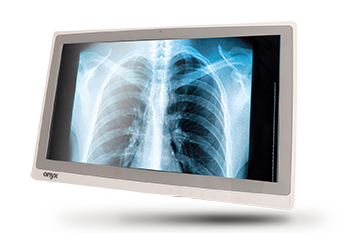

ZEUS-228

22” Fanless Smart View 7th Generation Core i7 Multi-Touch Medical Station

Product Feature

• Intel® 7th Generation Core™ i7-7600U 3.9GHz Dual Core Processor
• 22" 250nits Full HD High Contrast MVA LCD
• Support DDR4 SODIMM up to 32GB
• Capacitive Multi-Touch Screen / 5 Wire Resistive Touch Screen
• Easy Cleaning Flat Screen
• 10 Programmable Smart Function Keys with Dual Colors LED Status Indication
• LAN /USB (optional)/COM(optional) Medical Isolation
• Super Speed 10Gb/s USB 3.1 Port
• PCI Express[x4] x 1, PCI Express[x1] , PCI x1(optional)
• Trusted Platform Module/Smart Card Reader(optional)/RFID Reader(optional)
• Remote Management : Inte Active management Technology
• +12V to +24V wide range DC input / 100V to 240V AC input
• 25Wh Backup Battery (optional)

Datasheet

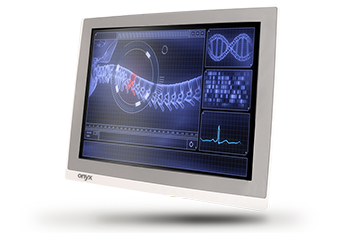

ZEUS-198

19” Fanless Smart View 7th Generation Core i7 Multi-Touch Medical Station

Product Feature

• Intel® 7th Generation Core i7-7600U 3.9GHz Dual Core Processor
• 19” 250-nit SXGA LCD
• Supports DDR4 SODIMM up to 32GB
• Capacitive Multi-Touch Screen / 5 Wire Resistive Touch Screen
• Easy Cleaning Flat Screen
• 10 Programmable Smart Function Keys with Dual Colors LED Status Indication
• LAN/USB(optional)/COM(optional) Medical Isolation
• Super Speed 10Gb/s USB 3.1 Port
• PCI Express[x4] x 1, PCI Express[x1] , PCI x1(optional)
• Trusted Platform Module / Smart Card Reader(optional) / RFID Reader (optional)
• Remote Management: Intel Active Management Technology
• +12V to +24V wide range DC input
• 25Wh Backup Battery(optional)
