小型LCDモジュール
The IPS transmissive type color active matrix TFT liquid crystal display .

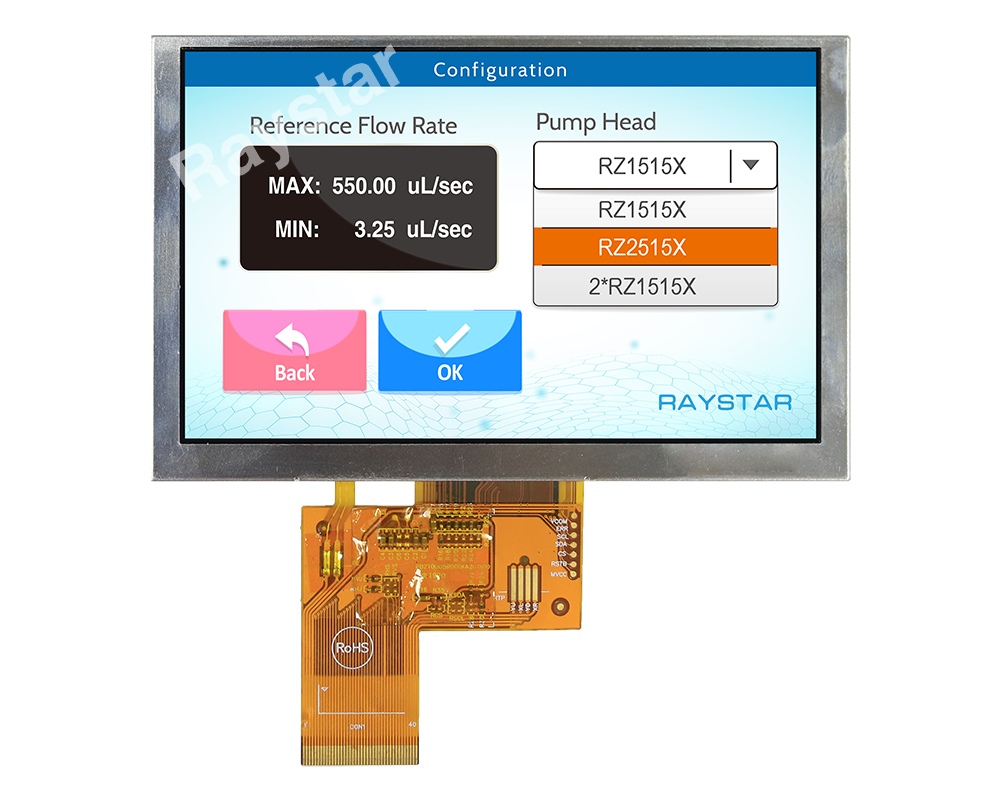

5" 800×480 High Brightness IPS TFT LCD Display
- Model No. RFF500F-AWH-DNN
- Size (Diagonal) : 5 inch
- Dot Matrix / Resolution : 800×480 dots
- Module Dimension : 120.7×75.8 mm
- Active Area : 108×64.8 mm
- Interface : RGB
- Touch Panel : Without Touch Screen

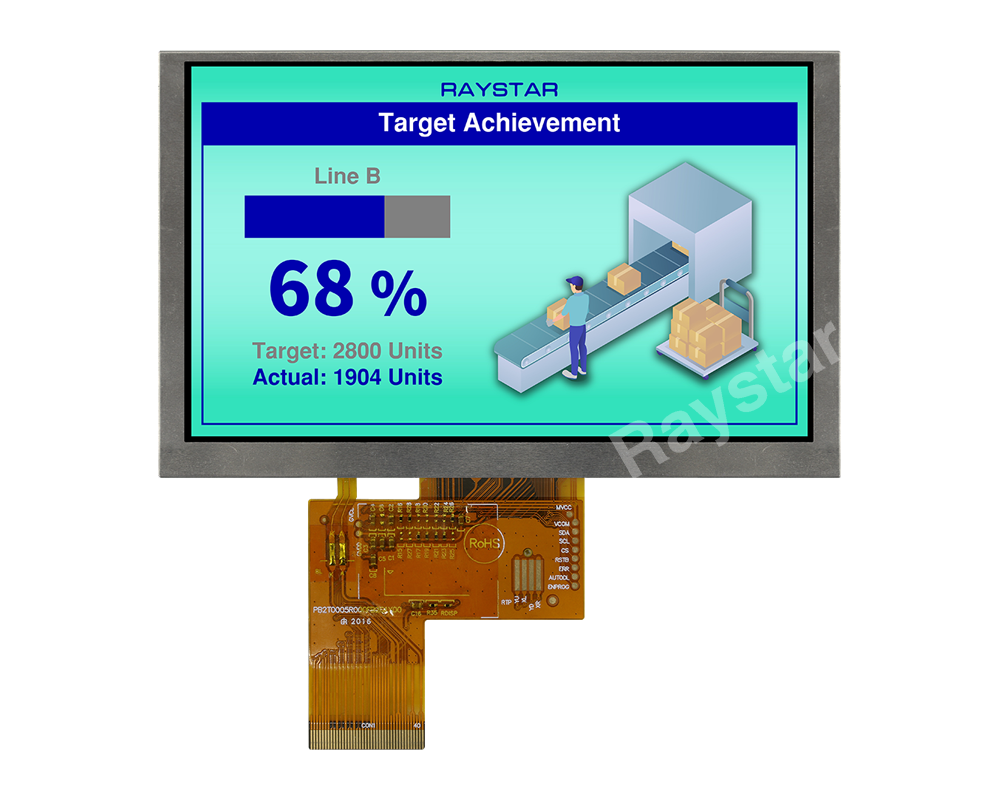

5 inch 800x480 Wide Temperature IPS TFT LCD
- Model No. RFF500F-AWW-LNN
- Size (Diagonal) : 5 inch
- Dot Matrix / Resolution : 800×480 dots
- Module Dimension : 120.7×75.8 mm
- Active Area : 108×64.8 mm
- Interface : LVDS
- Touch Panel : Without Touch Screen
- View Area : 110.7×67.4 mm

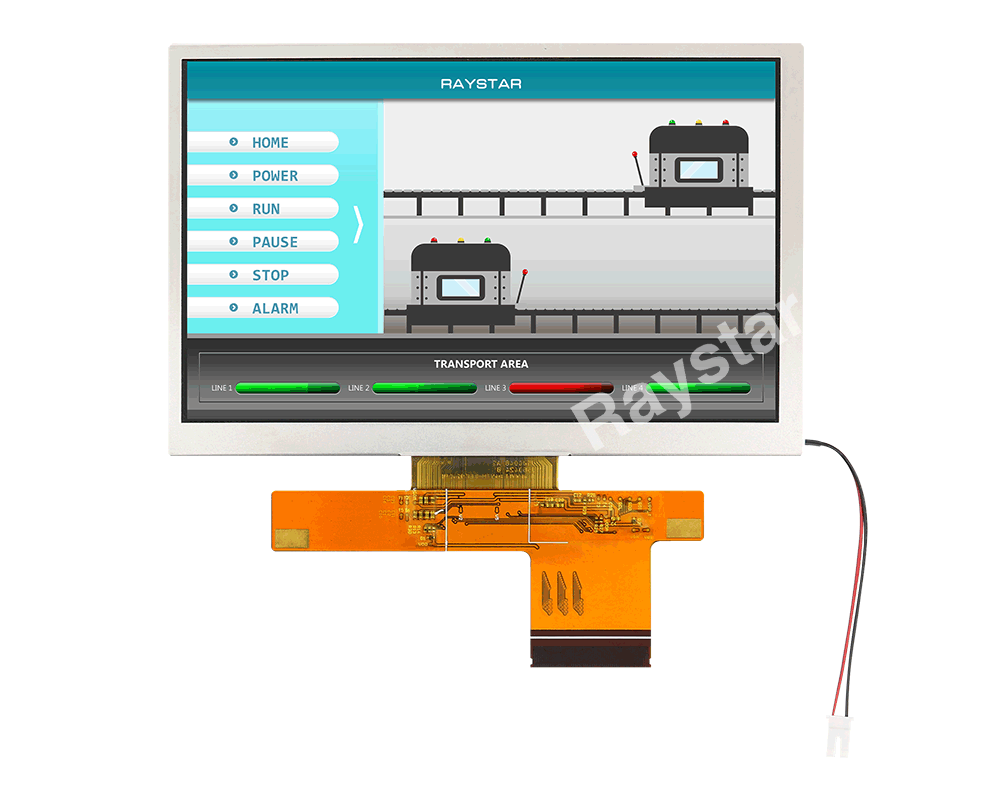

7 inch IPS Display, IPS 7"
- Model No. RFF700A4-AWH-DNN
- Size (Diagonal) : 7 inch
- Dot Matrix / Resolution : 800×480 dots
- Module Dimension : 165.8×106.61 mm
- Active Area : 152.4×91.44 mm
- Interface : RGB
- Touch Panel : Without Touch Screen
- View Area : 154.9×93.8 mm

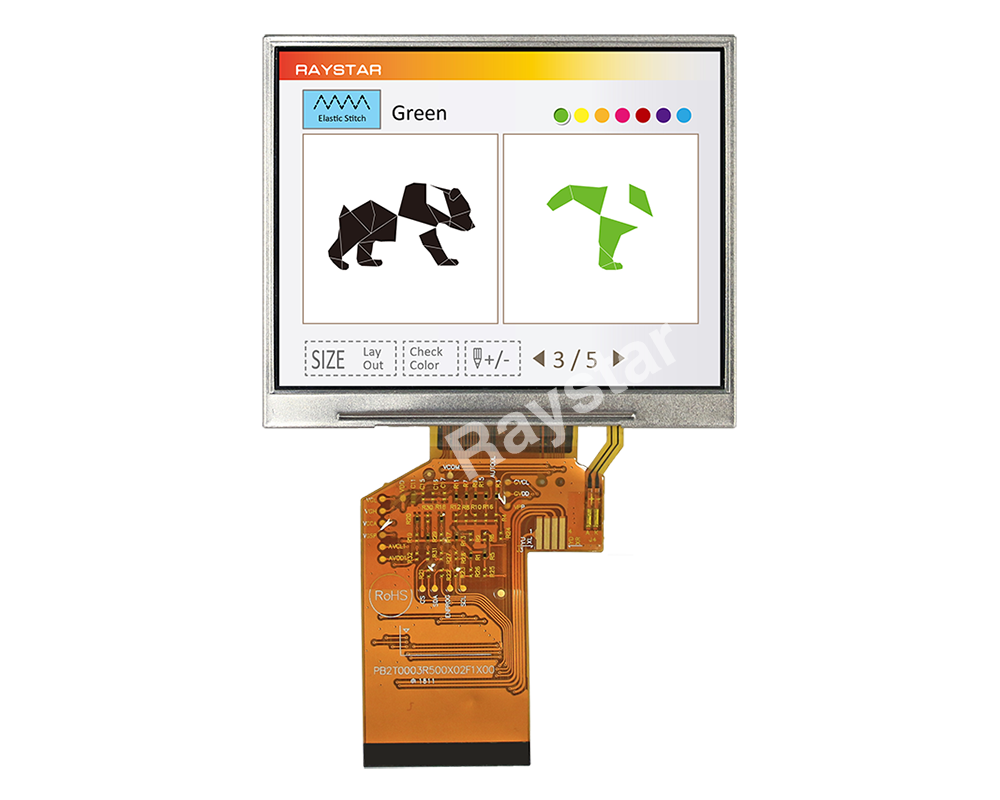

3.5 inch, 320x240 High Brightness IPS TFT Module
- Model No. RFC350X-AYH-DNN
- Size (Diagonal) : 3.5 inch
- Dot Matrix / Resolution : 320×240 dots
- Module Dimension : 76.84×63.84 mm
- Active Area : 70.08×52.56 mm
- Interface : RGB
- Touch Panel : Without Touch Screen
- View Area : 73.1×55.5 mm

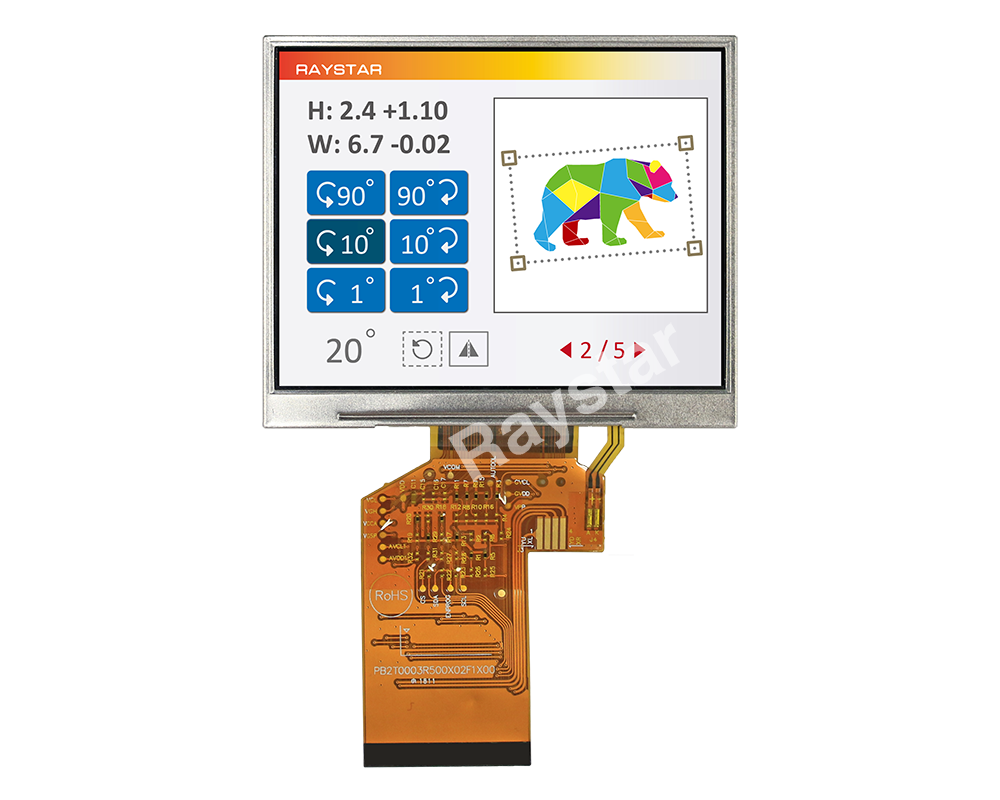

3.5 inch 320x240 Wide View IPS TFT LCD Module
- Model No. RFC350X-AYW-DNN
- Size (Diagonal) : 3.5 inch
- Dot Matrix / Resolution : 320×240 dots
- Module Dimension : 76.84×63.84 mm
- Active Area : 70.08×52.56 mm
- Interface : RGB
- Touch Panel : Without Touch Screen
- View Area : 73.1×55.5 mm

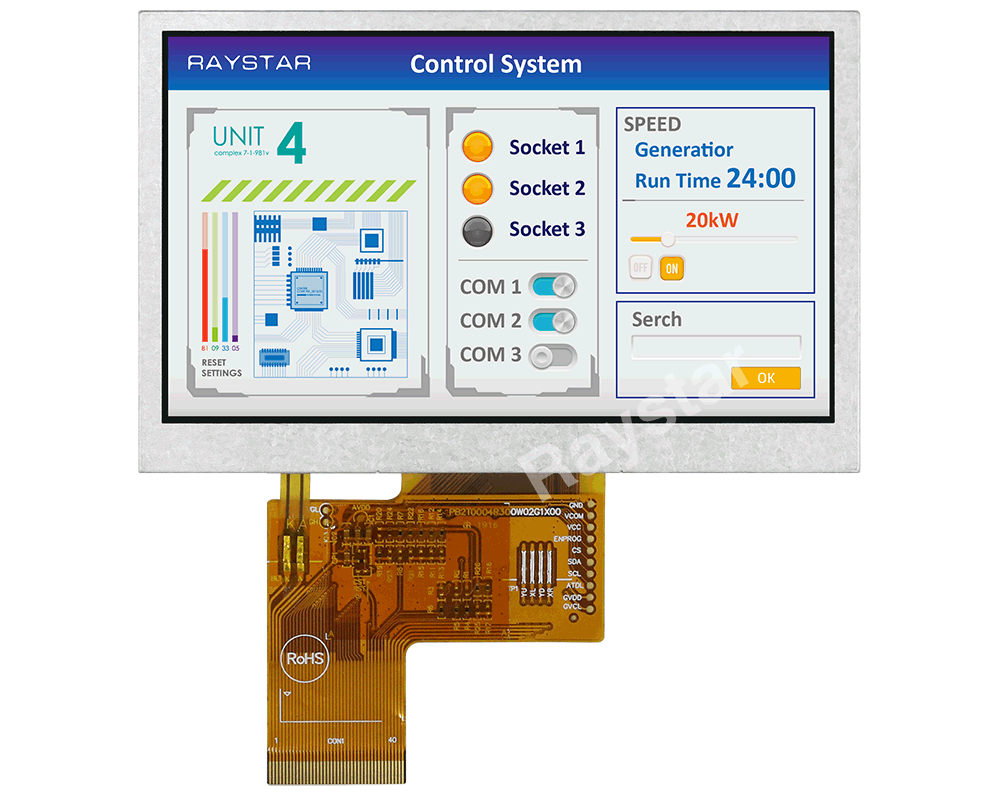

4.3", 480x272 dots, IPS TFT LCD Display Module
- Model No. RFE430W-AWW-DNN
- Size (Diagonal) : 4.3 inch
- Dot Matrix / Resolution : 480×272 dots
- Module Dimension : 105.5×67.2 mm
- Active Area : 95.04×53.856 mm
- Interface : RGB
- Touch Panel : Without Touch Screen
- View Area : 98.16×56.856 mm

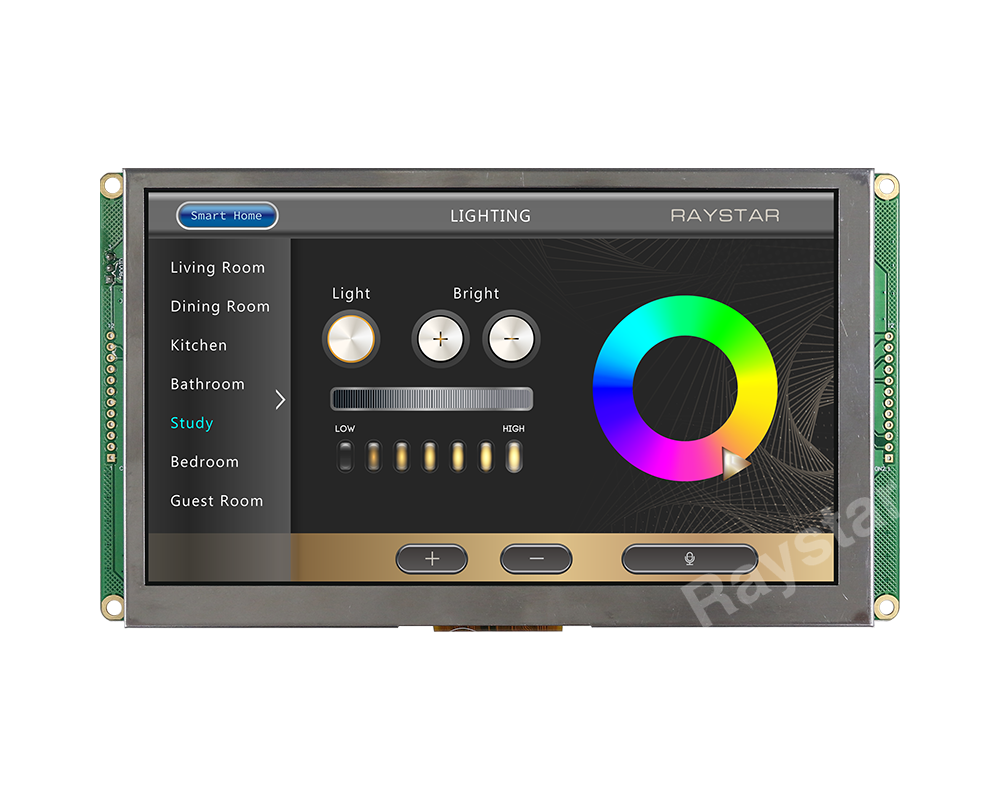

7" 1024x600 STM32 TFT LCD with MCU Control-Board
- Model No. RFH700M-EAW-LRN
- Size (Diagonal) : 7 inch
- Dot Matrix / Resolution : 1024×600 dots
- Module Dimension : 170.3×103.8 mm
- Active Area : 154.2144 × 85.92 mm
- Interface : UART,SPI
- Touch Panel : Without Touch Screen
3.5" IPS 320x480 TFT LCD
- Model No. RFI350U-AYW-DNN
- Size (Diagonal) : 3.5 inch
- Dot Matrix / Resolution : 320×480 dots
- Module Dimension : 54.5×83 mm
- Active Area : 48.96×73.44 mm
- Interface : MCU,RGB,SPI
- Touch Panel : Without Touch Screen
- View Area : 49.76×74.24 mm

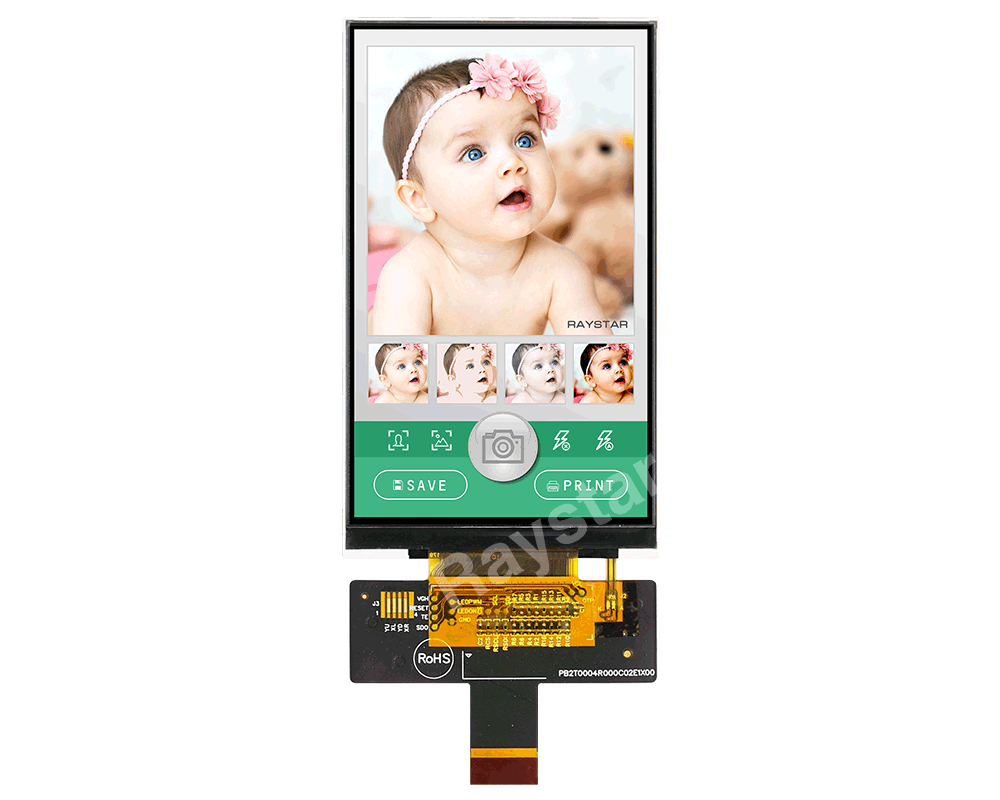

3.97" IPS MIPI TFT LCD Display Module
- Model No. RFO400C-AYW-MNN
- Size (Diagonal) : 3.97 inch
- Dot Matrix / Resolution : 480×800 dots
- Module Dimension : 57.14×96.85 mm
- Active Area : 51.84×86.4 mm
- Interface : MIPI DSI
- Touch Panel : Without Touch Screen

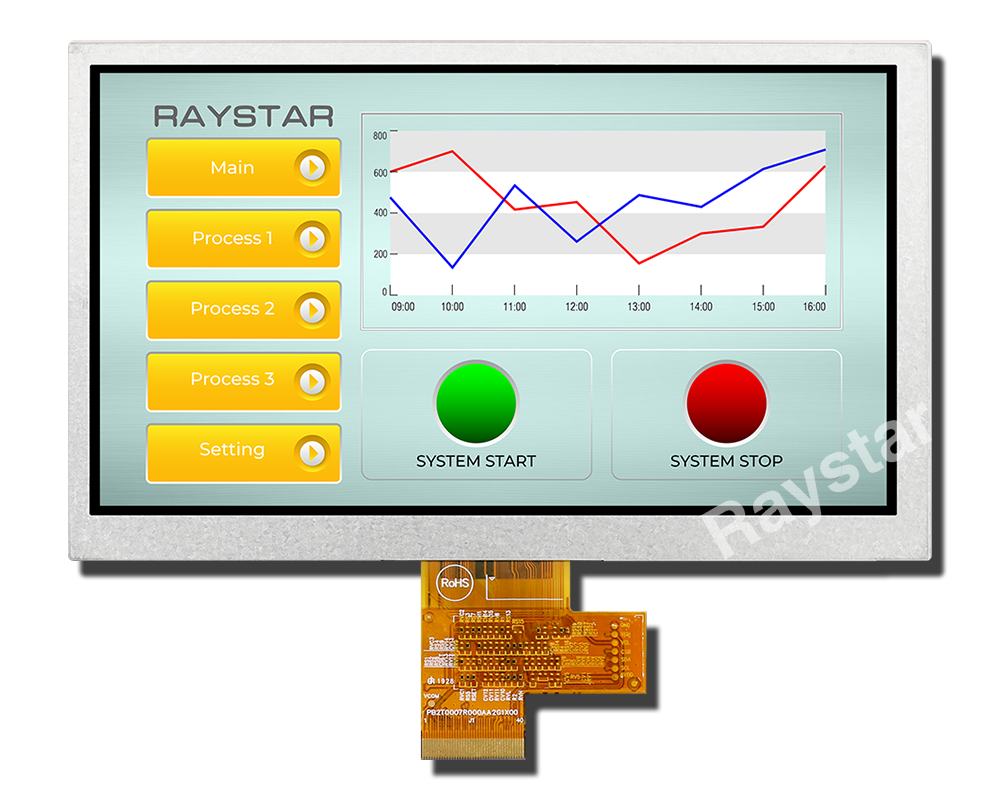

7" 1024x600 IPS LVDS TFT LCD Display
- Model No. RFH700A8-AYW-LNN
- Size (Diagonal) : 7 inch
- Dot Matrix / Resolution : 1024×600 dots
- Module Dimension : 169.9×103.4 mm
- Active Area : 154.2144×85.92 mm
- Interface : LVDS
- Touch Panel : Without Touch Screen
- View Area : 157.2×89.43 mm

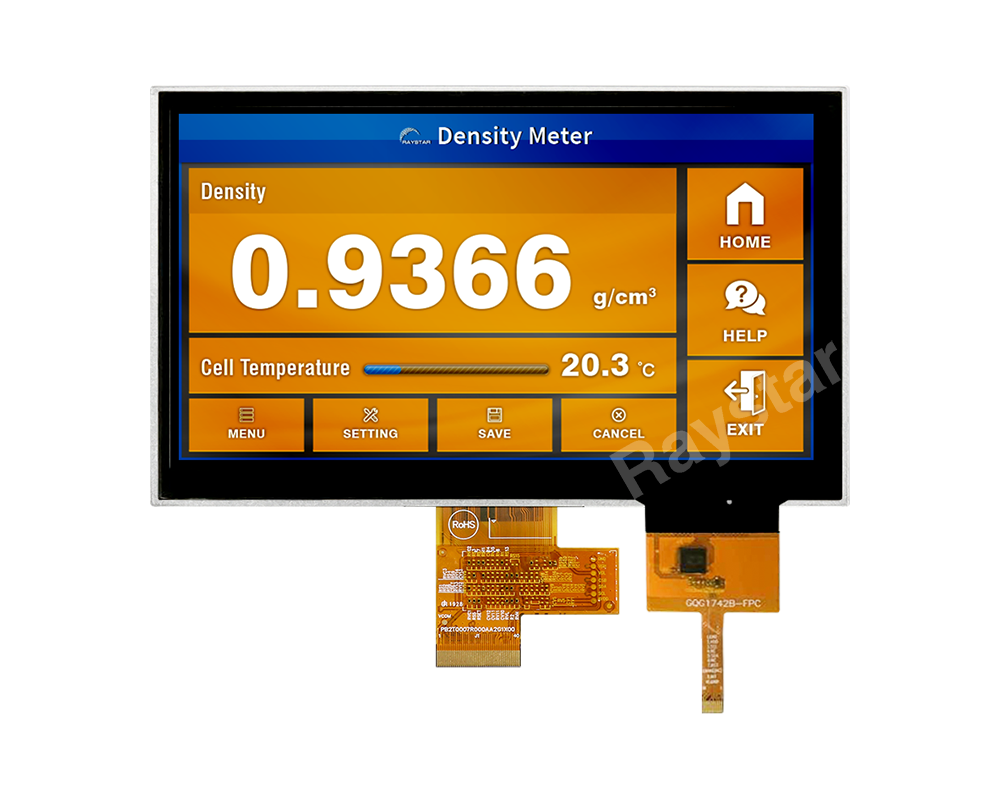

7" 1024x600 IPS LVDS PCAP TFT LCD Display
- Model No. RFH700A8-AYW-LNG
- Size (Diagonal) : 7 inch
- Dot Matrix / Resolution : 1024×600 dots
- Module Dimension : 169.9×103.4 mm
- Active Area : 154.2144×85.92 mm
- Interface : LVDS
- Touch Panel : Projected Capacitive Touch Screen
- View Area : 156.08×87.92 mm

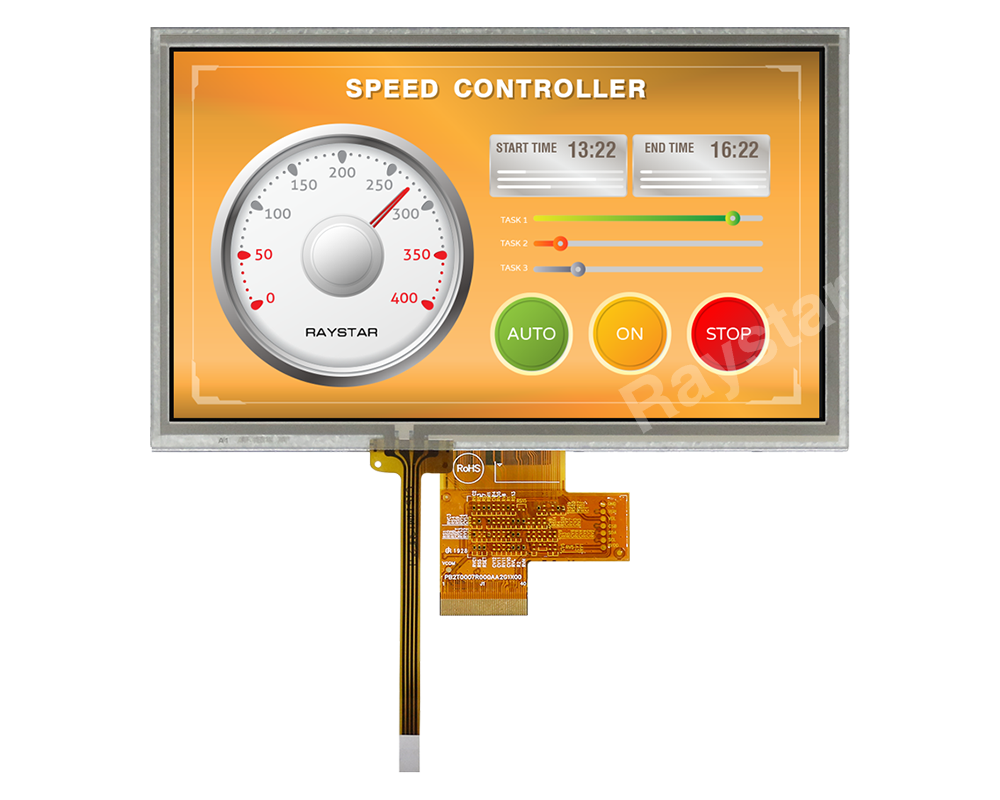

7" 1024x600 IPS LVDS RTP TFT LCD Display
- Model No. RFH700A8-AYW-LNS
- Size (Diagonal) : 7 inch
- Dot Matrix / Resolution : 1024×600 dots
- Module Dimension : 169.9×103.4 mm
- Active Area : 154.2144×85.92 mm
- Interface : LVDS
- Touch Panel : Resistive Touch Screen
- View Area : 156.6×89.1 mm
7" LVDS, IPS, High Brightness 1024x600 TFT LCD
- Model No. RFH700A8-AYH-LNN
- Size (Diagonal) : 7 inch
- Dot Matrix / Resolution : 1024×600 dots
- Module Dimension : 169.9×103.4 mm
- Active Area : 154.2144×85.92 mm
- Interface : LVDS
- Touch Panel : Without Touch Screen
- View Area : 157.2×89.43 mm

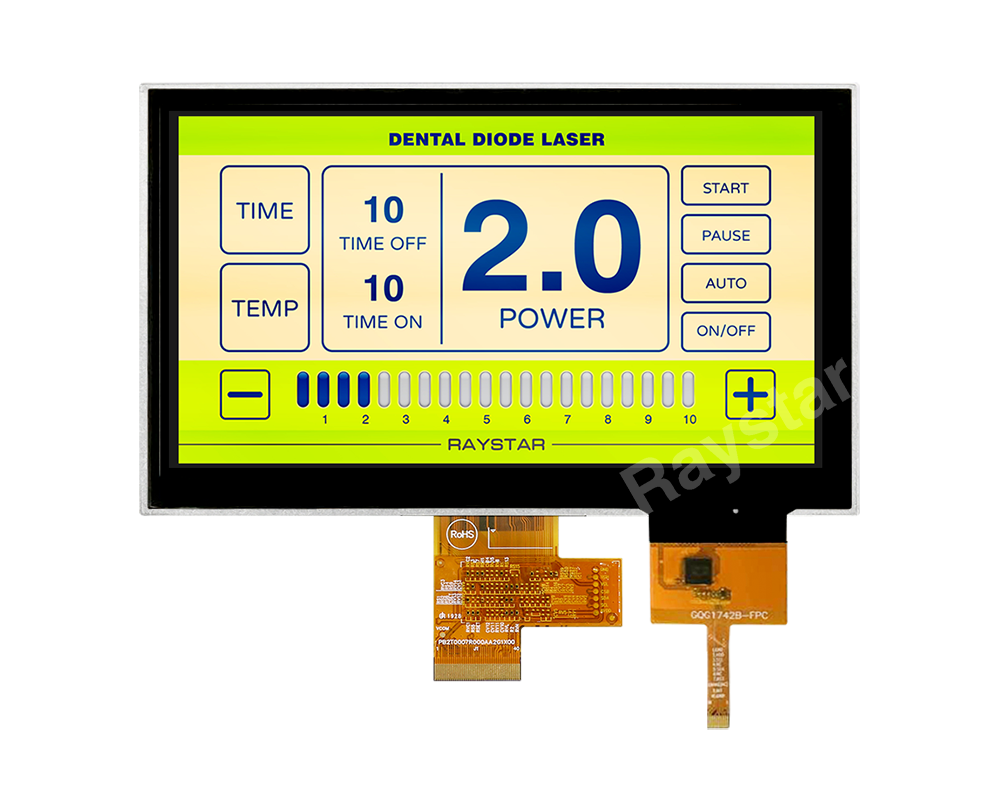

7" 1024x600 High Brightness IPS LVDS TFT Display with Capacitive Touch
- Model No. RFH700A8-AYH-LNG
- Size (Diagonal) : 7 inch
- Dot Matrix / Resolution : 1024×600 dots
- Module Dimension : 169.9×103.4 mm
- Active Area : 154.2144×85.92 mm
- Interface : LVDS
- Touch Panel : Projected Capacitive Touch Screen
- View Area : 156.08×87.92 mm

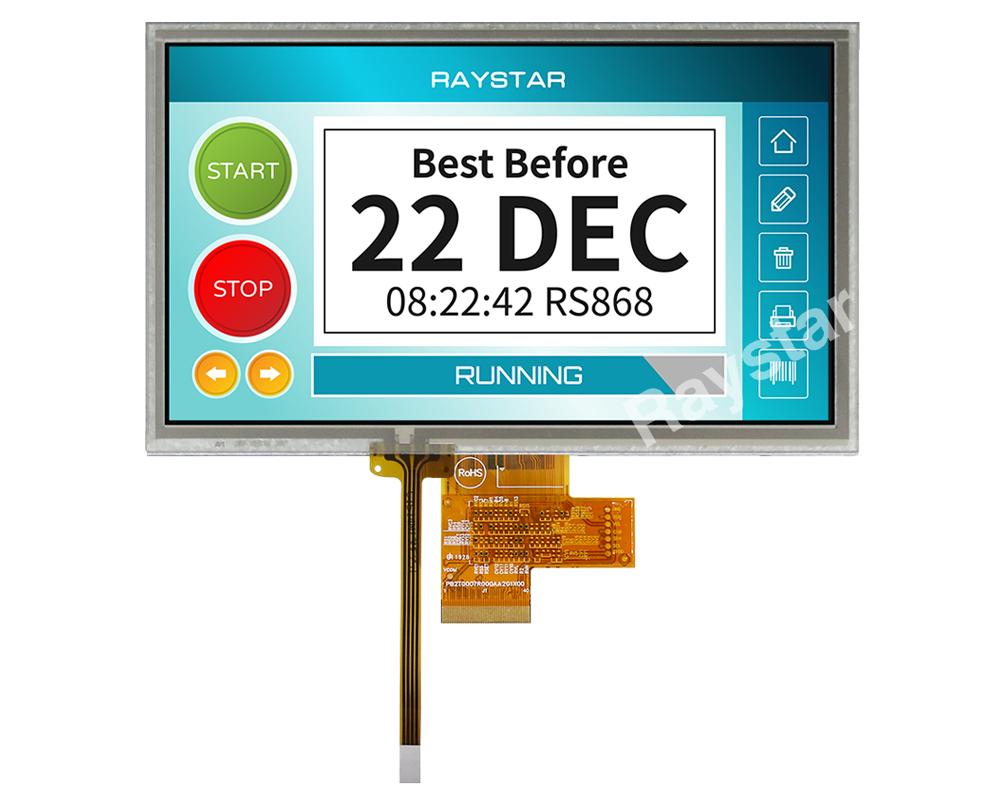

7" 1024x600 High Brightness IPS LVDS TFT Display with Resisitive Touch
- Model No. RFH700A8-AYH-LNS
- Size (Diagonal) : 7 inch
- Dot Matrix / Resolution : 1024×600 dots
- Module Dimension : 169.9×103.4 mm
- Active Area : 154.2144×85.92 mm
- Interface : LVDS
- Touch Panel : Resistive Touch Screen
- View Area : 156.6×89.1 mm

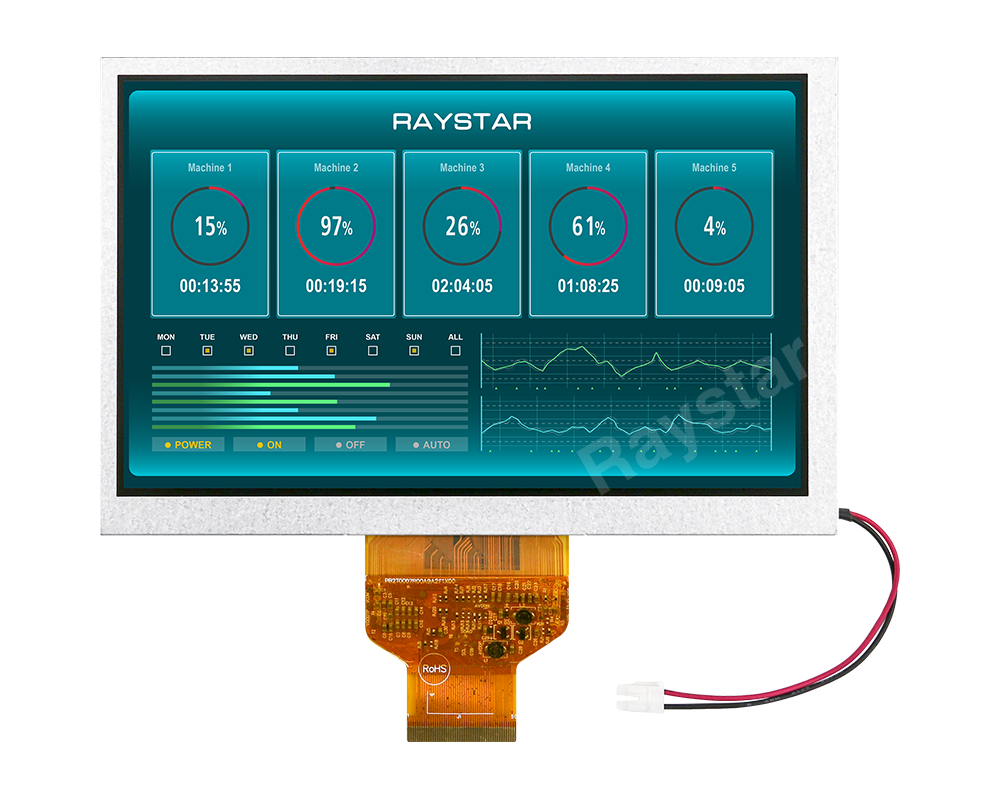

7" 800x480 Wide Temperature IPS TFT LCD
- Model No. RFF700A9-AWW-DNN
- Size (Diagonal) : 7 inch
- Dot Matrix / Resolution : 800×480 dots
- Module Dimension : 165.8×106.61 mm
- Active Area : 152.4×91.44 mm
- Interface : RGB
- Touch Panel : Without Touch Screen
- View Area : 154.9×93.8 mm

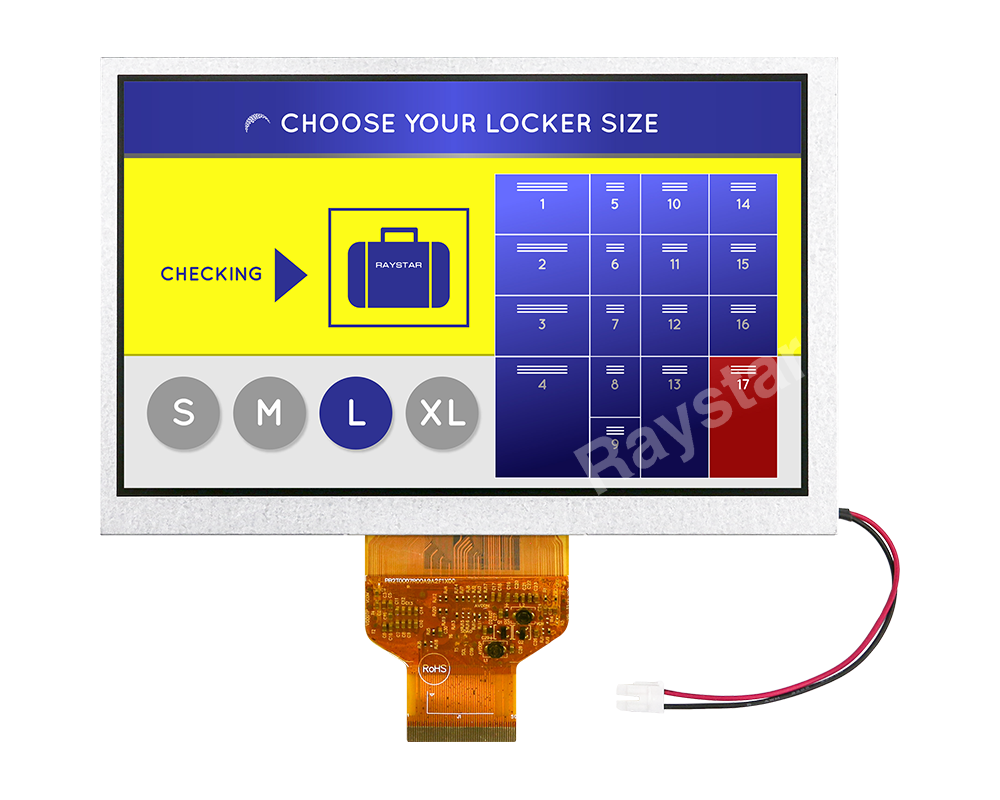

7" 800x480 High Brightness, Wide Temperature IPS TFT LCD
- Model No. RFF700A9-AWH-DNN
- Size (Diagonal) : 7 inch
- Dot Matrix / Resolution : 800×480 dots
- Module Dimension : 165.8×106.61 mm
- Active Area : 152.4×91.44 mm
- Interface : RGB
- Touch Panel : Without Touch Screen
- View Area : 154.9×93.8 mm

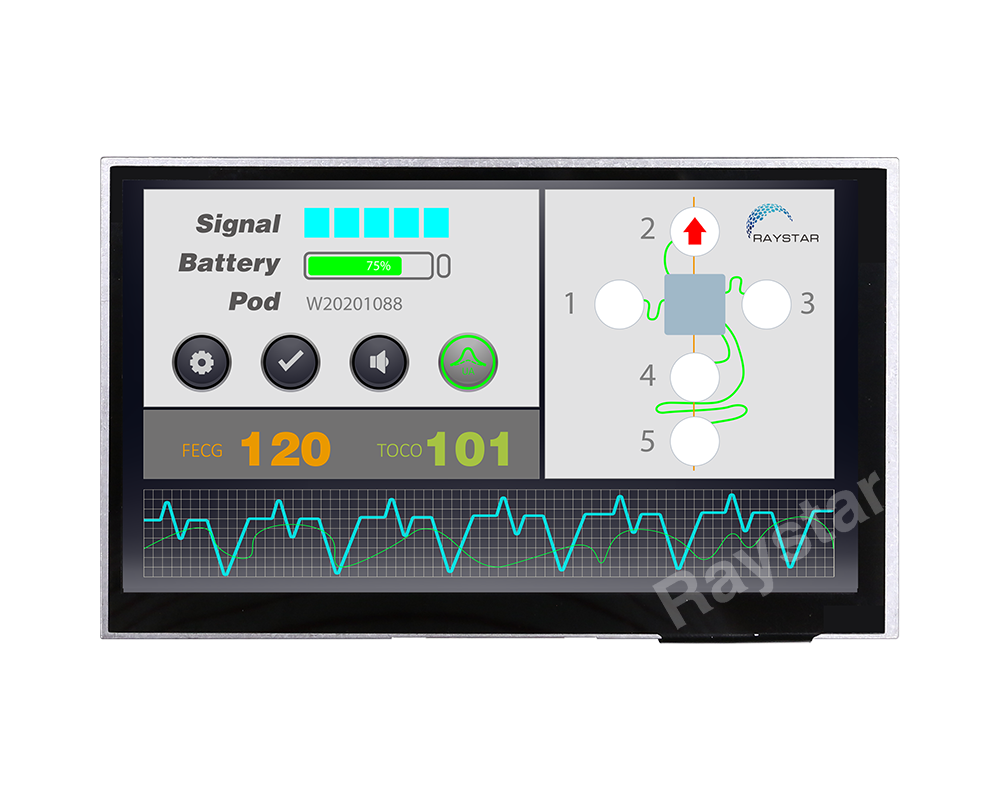

7" Projected Capacitive Touch IPS TFT Display Compatible with HDMI Interface
- Model No. RFH70VA8-1YW-LHG
- Size (Diagonal) : 7 inch
- Dot Matrix / Resolution : 1024×600 dots
- Module Dimension : 169.9×103.4 mm
- Active Area : 154.2144×85.92 mm
- Interface : DVI (HDMI CN)
- Touch Panel : Projected Capacitive Touch Screen
- View Area : 156.08×87.92 mm
